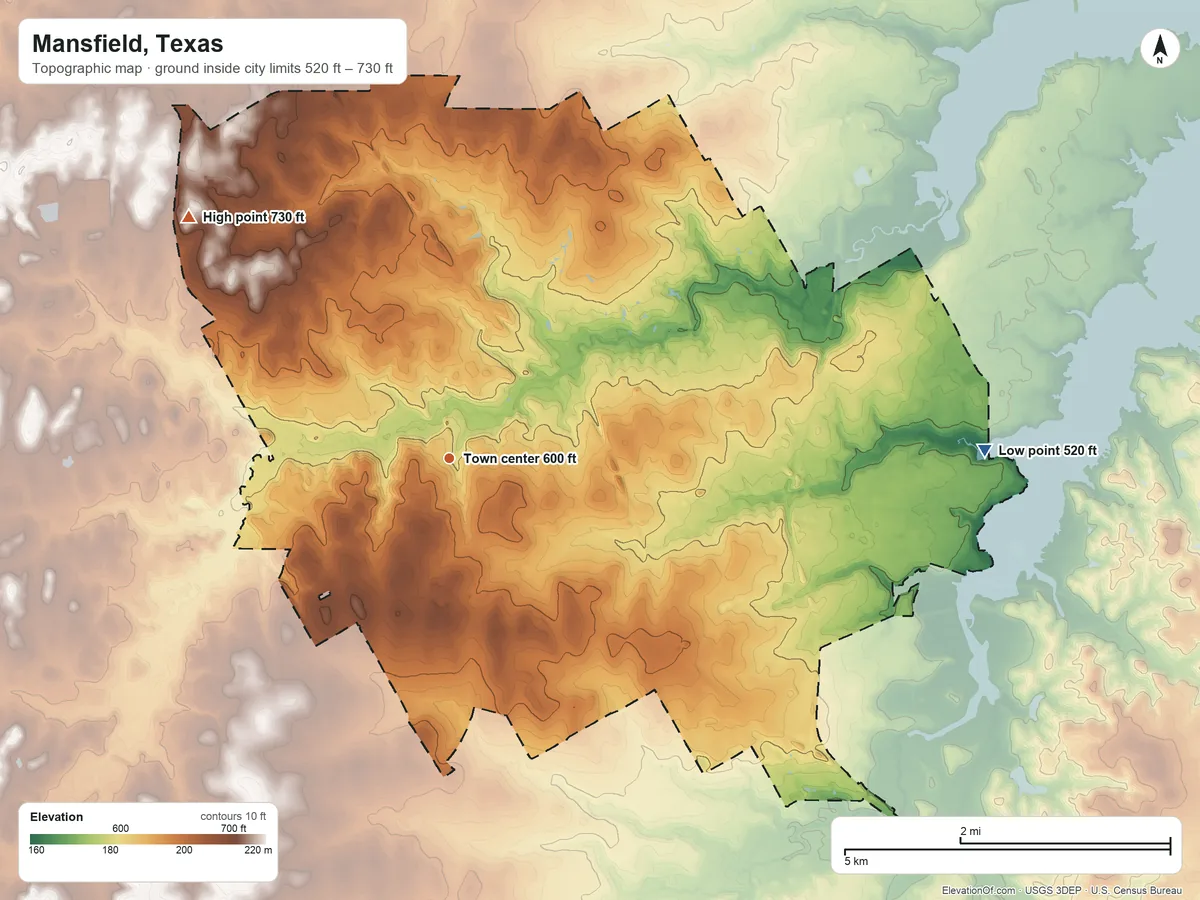

Mansfield, TX Elevation & Topographic Map
Elevation
730 ft 220 m680 ft 205 m650 ft 200 m600 ft 180 m550 ft 165 m520 ft 160 m
Contours every 200 ft, bold every 1,000 ft
USGS 3DEP · U.S. Census Bureau
How to use this mapviews, tools and data
- Elevation

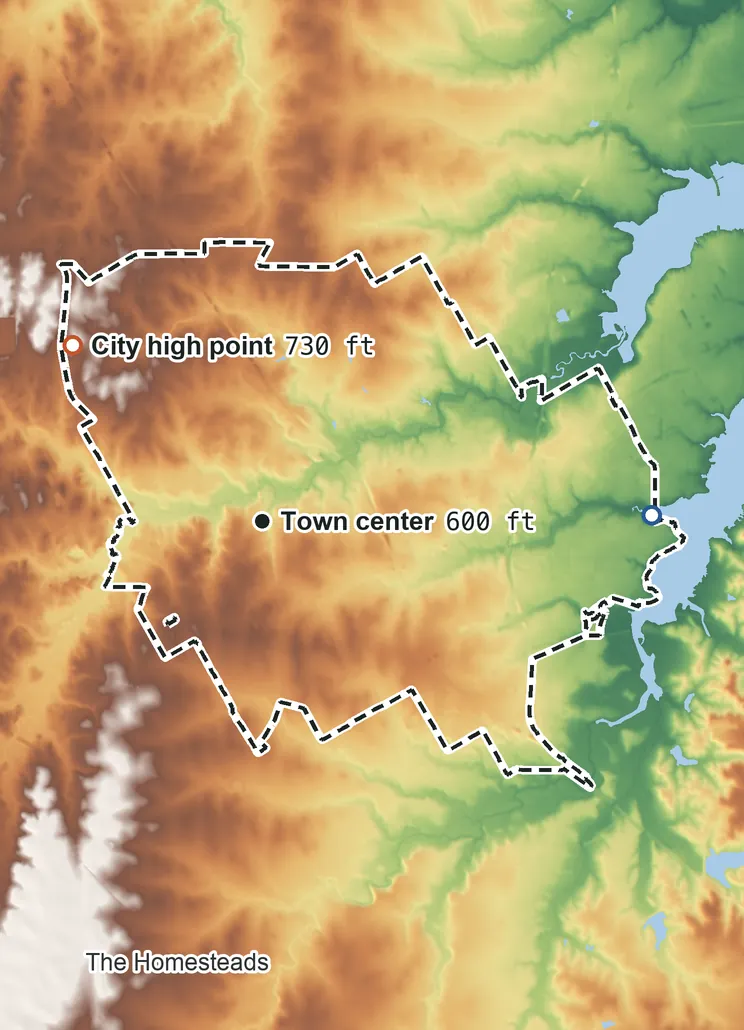

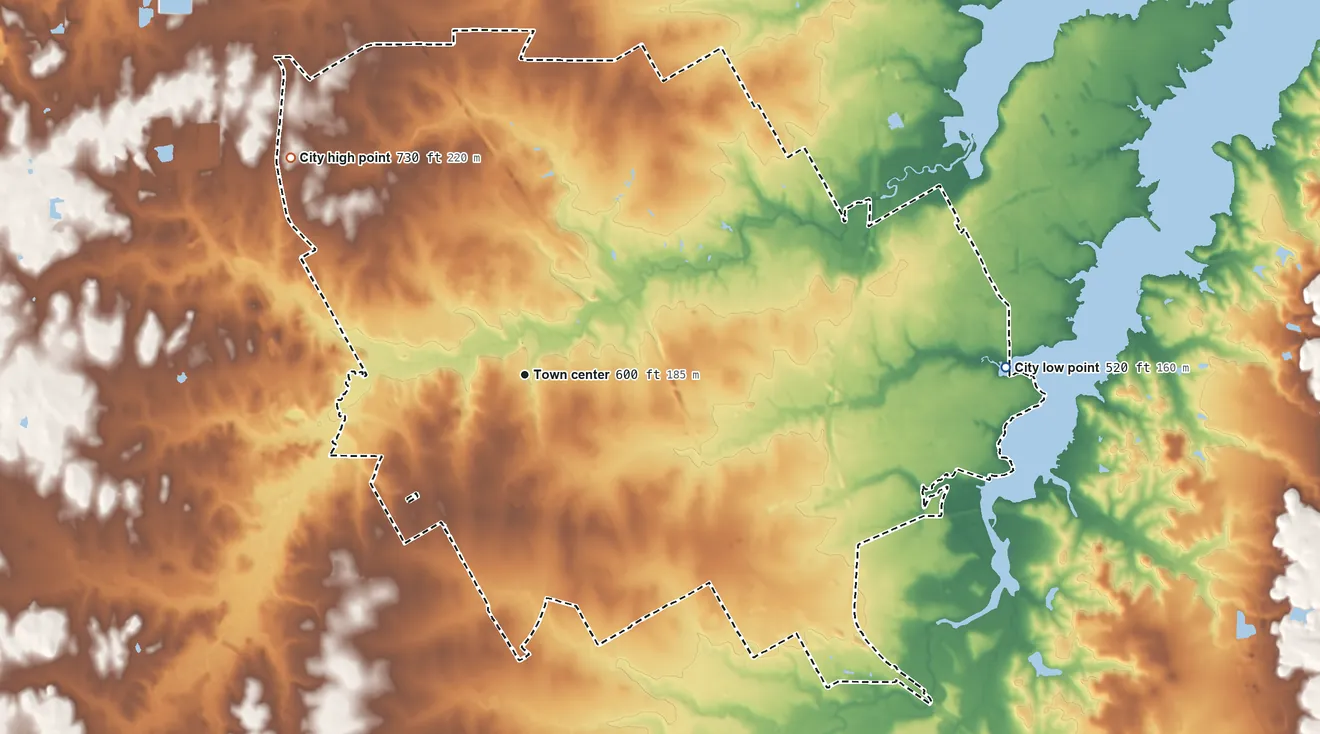

- Ground colored by height from green (lowest) to white (highest), with contour lines every 40–500 ft (USGS data).
- Satellite
- A 2016 satellite photo at 33 ft (10 m) detail; contours off.
- 3D
- Tilt and turn the terrain; hills are raised 1.5×, or set ×1 for true height.
- Click or tap anywhere
- The exact elevation of that spot in ft and m.
- Measure
- Pick two points for the climb, descent and grade along a straight line.
- City area
- Fades everything outside the official city limits (US Census).
Elevation Data
Mansfield sits at about 620 ft (190 m) above sea level, worked out from 2020 Census block heights on USGS 3DEP, weighted by residents.
Typical elevation
620 ft 190 m
most residents: 560–670 ft
Lowest
520 ft 160 m
on the east side
Highest
730 ft 220 m
on the northwest side
Average
620 ft 190 m
all land inside city limits
Mansfield spans about 210 ft of height, so no single spot tells the whole story. The ruler shows where its people live, and where the other numbers you'll see come from.
| Figure | Elevation |
|---|---|
| Typical Where people live: half of residents higher, half lower | 620 ft190 m |
| Highest point Inside city limits, on the northwest side | 730 ft220 m |
| Lowest point Inside city limits, on the east side | 520 ft160 m |
| Town center USGS map point for Mansfield | 600 ft185 m |
| Airport (GKY) FAA airport elevation, the highest point of its runways, 3.5 mi north of the city limits | 628 ft191 m |
| Average of all land | 620 ft190 m |
Elevation profile, west to east
7.2 mi west to east through the town center.
Topographic Map
- Location
- City in Tarrant, Johnson and Ellis counties, Texas, United States
- Population
- 80,803 2024 est.
- Land area
- 36.7 sq mi
- Density
- 2,199 per sq mi
- Coordinates
- 32.5632° N, 97.1417° W
- Time zone
- Central UTC−6 / −5
- Landform region
- Coastal Plain
- Drains to
- Trinity River → Gulf of America
- Airport
- Arlington Municipal (GKY) 628 ft
- ZIP codes 3
- 76063 76065 76084
⤓ Download this map
WebP, 1200 × 900. Free to use: credit “ElevationOf.com” with a link to this page.
Sources: U.S. Census Bureau, USGS, FAA
Nearby Places
Nearby towns by typical elevation
- Briaroaks790 ft
- Burleson760 ft
- Midlothian750 ft
- Rendon700 ft
- The Homesteads680 ft
- Venus660 ft
- Everman650 ft
- Kennedale650 ft
- Mansfield620 ft
- Dalworthington Gardens580 ft
- Pantego580 ft
Rankings by typical elevation
- Towns in Texas732nd highest of 1,861
- Towns in Tarrant County26th highest of 38
Peaks and hills nearest, by height
- Brushy Mound, Johnson County900 ft
- Turkey Peak, Johnson County870 ft
- Inspiration Point, Dallas County860 ft
- Poverty Knob740 ft
- Murray Hill700 ft
How we measure
- Typical elevation: the population-weighted median: every 2020 Census block inside the city limits, at its USGS 3DEP height, weighted by the people who live there. Half of residents live higher, half lower.
- Lowest, highest, average: USGS 3DEP bare-earth heights on a 1 arc-second (≈100 ft, 30 m) grid, land only, inside the Census city limits (TIGER, Jan 1 2026).
- Nearby Places: nearby towns and rankings use each town's typical elevation, so every town is compared like for like. Rankings count every city, town, township and census-designated place, including places inside a town. Peaks and hills: the nearest summits with at least 980 ft (300 m) of prominence within 62 mi (100 km), then federal (GNIS) summits within 16 mi (25 km) when there are fewer than 5; each is the 3DEP top on a ~7 ft (2 m) window, or the NGS published height when a usable survey mark sits within 160 ft (50 m) of it (shown as published).
- Rounding: computed heights are rounded to 10 ft (5 m), or to 1 ft (1 m) under 100 ft; 3DEP is good to about a meter, not a foot. Published figures (FAA airport elevation, NGS survey heights) are shown as their publisher gives them.
- Datum: North American Vertical Datum of 1988 (NAVD 88). NGS plans to replace NAVD 88 with a new datum (NAPGD2022); heights will then shift slightly.
- Sources: USGS 3DEP, GNIS, Watershed Boundary Dataset and physiographic provinces; U.S. Census Bureau (boundaries, 2020 blocks, 2024 population estimates, Gazetteer areas, ZIP code areas); FAA airport data; BTS time zones. All public domain.
